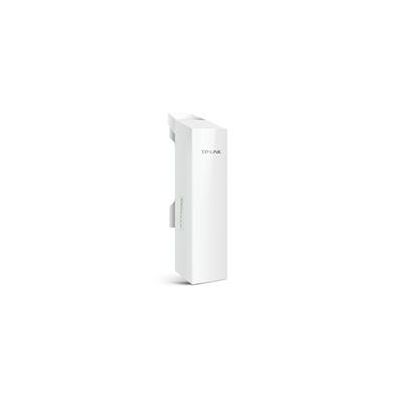

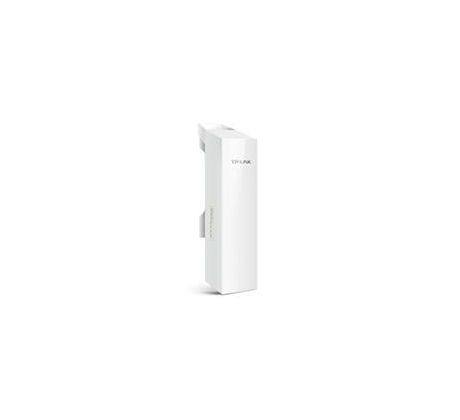

Vonkajší WiFi Access Point TP-LINK CPE210 (CPE210)

Hlavní znaky: Vestavěná 9dBi 2x2 duální polarizovaná směrová anténa MIMO Nastavitelný vysílací výkon od 0 do 27 dBm/500mW Optimalizace na úrovni systému pro bezdrátový přenos do vzdálenosti více než 5km Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP Centralizovaný systém správy – řízení Pharos Provozní režimy AP / Klient / AP směrovač / Směrovač AP klienta (WISP) Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení Hardwarové funkce Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc Rozhraní 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button Rozměry (š*h*v) 224 x 79 x 60 mm Napájení Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC Typ antény Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane) Note: For more details, please refer to datasheet Memory 64MB DDR2 RAM, 8MB Flash Ochrana 15KV ESD Protection 6000V Lightning Protection Spotřeba 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification Funkce bezdrátové sítě Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Frekvence 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Standardy bezdrátové sítě IEEE 802.11b/g/n (with Pharos MAXtream disabled) Citlivost příjmu • 802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm • 802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm • 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm Transmission Power 27dBm/500mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. Softwarové funkce Wireless Configurations Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Správa Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server System Tools Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog POE ADAPTER FEATURES Certifikace CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Efektivita >80% Input Current 0.8A Max @ 100VAC Input Voltage 100VA~240VAC @ 50Hz~60Hz Output Voltage 24VDC(+4,5pins; -7,8pins) Power Status LEDs 0~0.8A: Green 0.8A~1.0A: Red Rozhraní 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) Rozměry (š x h x v) 110*57*33.5mm Tlačítko Remote Reset Button Vstup 100-240VAC, 50/60Hz Výstup 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) JINÉ Certifikace CE, FCC, RoHS, IPX5 Obsah balení Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide Systémové požadavky Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Provozní prostředí Operating Temperature: -30°C~70°C (-22?~158?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
